제품 상세 정보:
|
| 재료 :: | 세라믹 | 물드세요 :: | 백색 |
|---|---|---|---|
| 정격 전압 :: | 1000VDC | 정격 전류 :: | 6A-70A |
| 차단 용량 :: | DC20KA | 표준 :: | UL248-20、ISO8820、 JASO-D622、GB/T13539、ROHs |
| 용법 :: | 반도체 보호, 고전압 자동차 | 키워드 :: | 반도체 보호 퓨즈 |
| 하이 라이트: | 요업 bs88 60a 퓨즈,1000VDC bs88 gm 퓨즈,하얀 bs88 60a 퓨즈 |
||

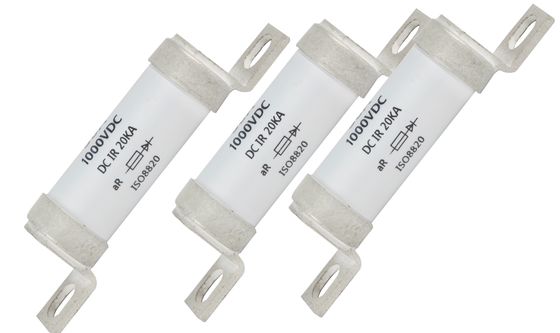

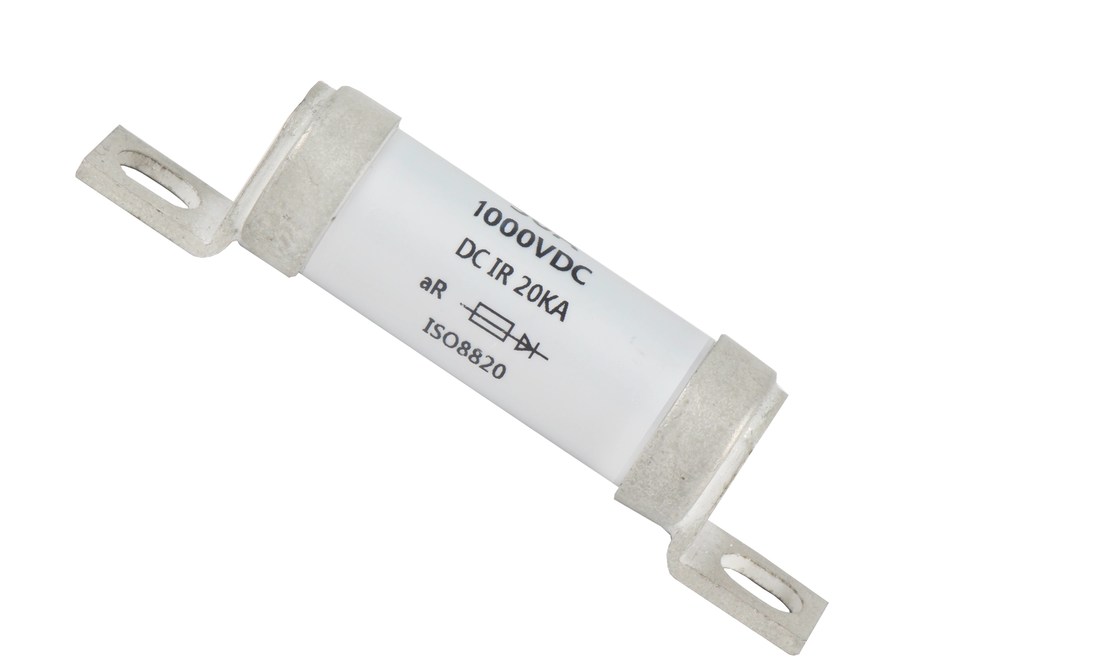

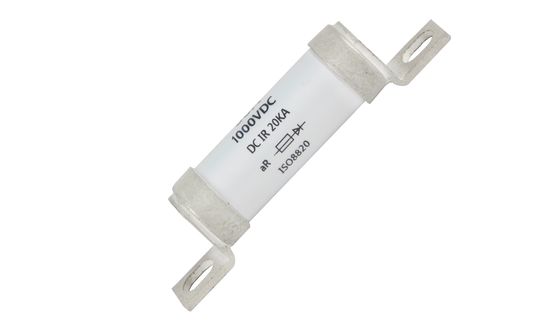

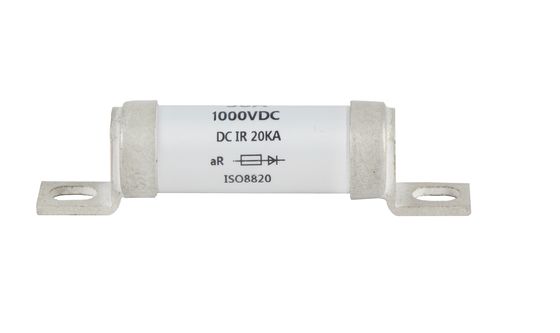

고압 휴즈 BS88 퓨즈 반도체 보호 퓨즈 저전류 퓨즈
재료 :
본체 : 세라믹
핀 : 구리 합금
제품 프레젠테이션 :
|
정격 전압 额定电压 |
DC1000V或低于 |
종류 보호 保护类别 |
aR |
| 정격 전류 流 | 6A-700A |
차단 용량 分能力 |
DC20KA |
|
그 요구를 만족시키세요 符合要求 |
UL248-20,ISO8820,JASO-D622,GB/T13539, 盟和RoHS 指令 |
발언 注 |
UL中 |
제품(MM)의 品外形尺寸(mm)/Overall 차원
/Product는 타이핑합니다
|
수 序号 |
모델 型号 |
산출물 코드 产品代码 |
정격 전류 流 A |
I2t(A2Sec) |
소비 전력 功率耗 Ｗ |
|
| 弧前 | 熔断 | |||||
| 1 | CPJ / CTJ | HBD-6CPJ/HBD-6CTJ | 6 | 2.2 | 13.5 | 2.0 |
| HBD-10CPJ/HBD-10CTJ | 10 | 7.4 | 48.0 | 3.0 | ||
| HBD-12CPJ/HBD-12CTJ | 12 | 10.5 | 67 | 3.2 | ||
| HBD-16CPJ/HBD-16CTJ | 16 | 17.0 | 110 | 7.0 | ||
| 2 | EPJ / ETJ | HBD-16EPJ/HBD-16ETJ | 16 | 26.0 | 132 | 3.2 |
| HBD-20EPJ/HBD-20ETJ | 20 | 41.0 | 228.0 | 3.5 | ||
| HBD-25EPJ/HBD-25ETJ | 25 | 26.5 | 257.0 | 7.0 | ||
| HBD-32EPJ/HBD-32ETJ | 32 | 33.0 | 350.0 | 11.0 | ||
| HBD-35EPJ/HBD-35ETJ | 35 | 52.8 | 500.0 | 11.2 | ||
| HBD-40EPJ/HBD-40ETJ | 40 | 108.0 | 910.0 | 9.0 | ||
| HBD-45EPJ/HBD-45ETJ | 45 | 110.0 | 1100.0 | 9.6 | ||
| HBD-50EPJ/HBD-50ETJ | 50 | 123.0 | 1250.0 | 10.8 | ||
| HBD-56EPJ/HBD-56ETJ | 56 | 140.0 | 1550.0 | 13.5 | ||
| HBD-63EPJ/HBD-63ETJ | 63 | 170.0 | 1990.0 | 15.5 | ||
| HBD-80EPJ/HBD-80ETJ | 80 | 360.0 | 4000.0 | 18.0 | ||
| 3 | HPJ / HTJ | HBD-32HPJ/HBD-32HTJ | 32 | 110 | 1300 | 10.8 |
| HBD-40HPJ/HBD-40HTJ | 40 | 170 | 2200 | 13.0 | ||
| HBD-50HPJ/HBD-50HTJ | 50 | 270 | 3400 | 16.0 | ||
| HBD-63HPJ/HBD-63HTJ | 63 | 490 | 6100 | 19.3 | ||
| HBD-80HPJ/HBD-80HTJ | 80 | 920 | 11400 | 23.0 | ||
| HBD-100HPJ/HBD-100HTJ | 100 | 1500 | 18800 | 28.5 | ||
| HBD-125HPJ/HBD-125HTJ | 125 | 2500 | 30800 | 34.0 | ||
| HBD-160HPJ/HBD-160HTJ | 160 | 4400 | 54800 | 37.3 | ||
| 4 | EEPJ / EETJ | HBD-90EEPJ/HBD-90EETJ | 90 | 500 | 4510 | 19.0 |
| HBD-110EEPJ/HBD-110EETJ | 110 | 610 | 6700 | 26.5 | ||
| HBD-140EEPJ/HBD-140EETJ | 140 | 1100 | 12000 | 34.0 | ||
| HBD-160EEPJ/HBD-160EETJ | 160 | 1600. | 17000 | 38.0 | ||
| 5 | SMJ / STJ | HBD-180SMJ/HBD-180STJ | 180 | 1390 | 13400 | 39.2 |
| HBD-200SMJ/HBD-200STJ | 200 | 2600 | 17900 | 40.0 | ||
| HBD-225SMJ/HBD-225STJ | 225 | 3600 | 25400 | 42.5 | ||
| HBD-250SMJ/HBD-250STJ | 250 | 5050 | 36000 | 47.0 | ||
| HBD-280SMJ/HBD-280STJ | 280 | 6950 | 52000 | 48.0 | ||
| HBD-315SMJ/HBD-315STJ | 315 | 9900 | 72800 | 54.0 | ||
| HBD-350SMJ/HBD-350STJ | 350 | 14400 | 98000 | 55.5 | ||
| HBD-400SMJ/HBD-400STJ | 400 | 19000 | 128000 | 58.0 | ||
| 6 | SMMJ / STTJ | HBD-400SMMJ/HBD-400STTJ | 400 | 9800 | 69700 | 84.0 |
| HBD-450SMMJ/HBD-450STTJ | 450 | 14300 | 96000 | 90.0 | ||
| HBD-500SMMJ/HBD-500STTJ | 500 | 19500 | 138000 | 97.5 | ||
| HBD-550SMMJ/HBD-550STTJ | 550 | 27900 | 197000 | 100.0 | ||
| HBD-630SMMJ/HBD-630STTJ | 630 | 41200 | 275000 | 102.0 | ||
| HBD-700SMMJ/HBD-700STTJ | 700 | 55500 | 375000 | 119.5 | ||
